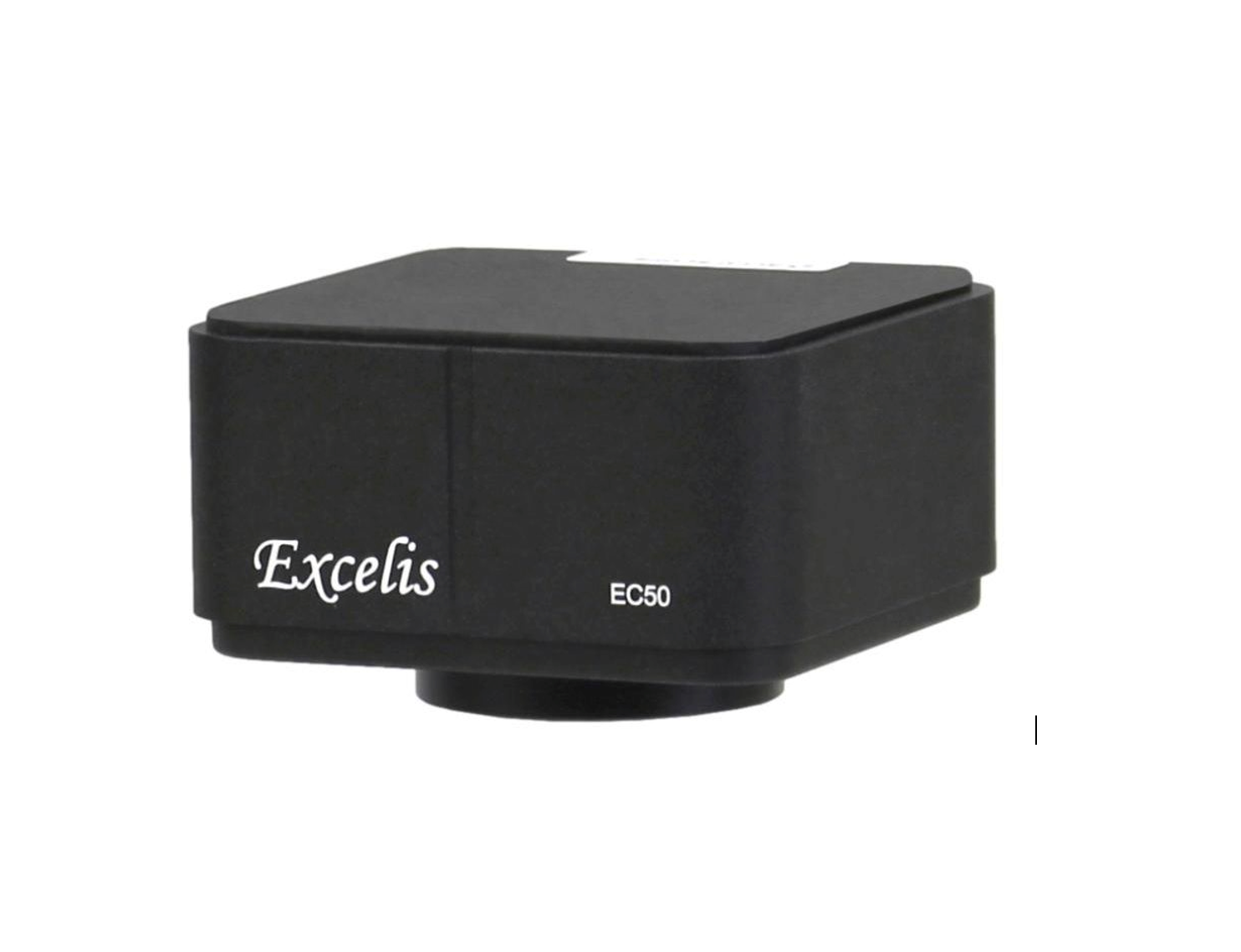

Excelis EC50 5MP Color Camera

Robust, affordable 5MP color camera for routine microscopy imaging.  USB 2.0 connectivity and advanced CaptaVision+ imaging software for a wide range of applications.

The EC50 features the renown SONY STARVIS IMX335 sensor for dependable imaging at up to 29fps. Controlled via CaptaVision+ for both Windows PC and Mac, the EC50 is ready for live and still imaging, and video capture.

Recommended Applications:

• EDUCATION
• TRAINING
• CLINICAL
• VETERINARY
• INSPECTION
• DEMONSTRATION
• DOCUMENTATION

• Intuitive & customizable user interface

• Capture still images, record live and time lapse video

• Simple calibration and measurements

• Advanced control of exposure, gain, color balance, etc.

• Powerful image processing tools

• Intelligent flat field correction

• Flexible report generation and data export

Model Sensor/Model Sensor Size Resolution Pixel Size Frame Rate Shutter Mode AU-EC50 Sony IMX335LQN-C, CMOS, color 1.2/8”; 0.35x or 0.5x (recommended) C-mount adapter 2560 (H) x 1920 (V) 2.0µm x 2.0µm 29fps @ 2560 x 1920 Rolling Image Transmission USB 2.0 Exposure Time 1µs - 1s941ms Automatic Settings Exposure, Color Scale, White Balance Manual Settings Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction Color Temperature 2000-15000K ADC Depth Operating Temperature & Humidity Data Interface PC Imaging Software (see additional features at right) 12Bit 0-60°C USB 2.0 System Software Compatibility CaptaVision+ Imaging Software for PC and MacOS Advanced Camera Controls:  live/still image measurement and annotation; flat field correction; video record; delay capture; ROI and mask; fluorescence image settings; fluorescence multi-color channel merge Image Types:  TIF, JPG, PNG, DICOM TWAIN driver available *DICOM not available for MacOS Windows 7, 8, 10, 11 (64-bit recommended) Mac OSX 10.4 and higher  Minimum System Recommendations:  intel i5 or better (Quad Core or better); 16GB RAM or more; USB 2.0 high-speed port minimum Camera Size/Weight 68 x 68 x 42.5mm / 236g
